Product Overview
15.6-inch 1920 x 1080 Embedded industrial panel PC · 10-point capacitive touch · Fanless cooling. Choose 3288 2+16G or Intel i3 4+128G+WiFi configuration. Request a quote
Application and Installation
This model belongs to the 15.6-inch range. Confirm the installation space, mounting method, display requirements and operating environment before ordering.
Configuration Review
Processor, memory, storage, operating system, wireless connectivity and I/O availability depend on the selected hardware platform. Our team will confirm compatibility with your software and peripherals during quotation.
- Confirm screen size, resolution and touch requirements
- Provide required CPU performance, RAM and storage
- List required USB, LAN, serial and display interfaces
- Specify operating system and application software
- Provide quantity, destination and expected schedule
Display and installation planning
| Model | TY-X01-156 |
|---|---|
| Screen size | 15.6-inch |
| Resolution | 1920 x 1080 |
| Touch | 10-point capacitive touch |
| Cooling | Fanless |
The screen size is not the panel cutout size. Confirm the approved mechanical drawing, cutout, connector clearance and final I/O for the selected configuration before machining your enclosure.
Compare TY-X01 screen sizes
Compare other embedded industrial panel PCs in the TY-X01 family:
- TY-X01 10.1-inch — 1280 x 800
- TY-X01 17-inch — 1280 x 1024
- TY-X01 21.5-inch — 1920 x 1080
- TY-X01 32-inch — 1920 x 1080
Request a Project Quote
Send the model name and your project requirements for configuration guidance, pricing and lead-time confirmation.
Commercial Terms
- MOQ: 1 unit
- Warranty: 1 year
- Standard production lead time: 1-10 units: 7 days; 11-50 units: 14 days; 51-100 units: 20 days
Lead time starts after configuration and order confirmation. Customized products, special testing and shipping time are confirmed separately.

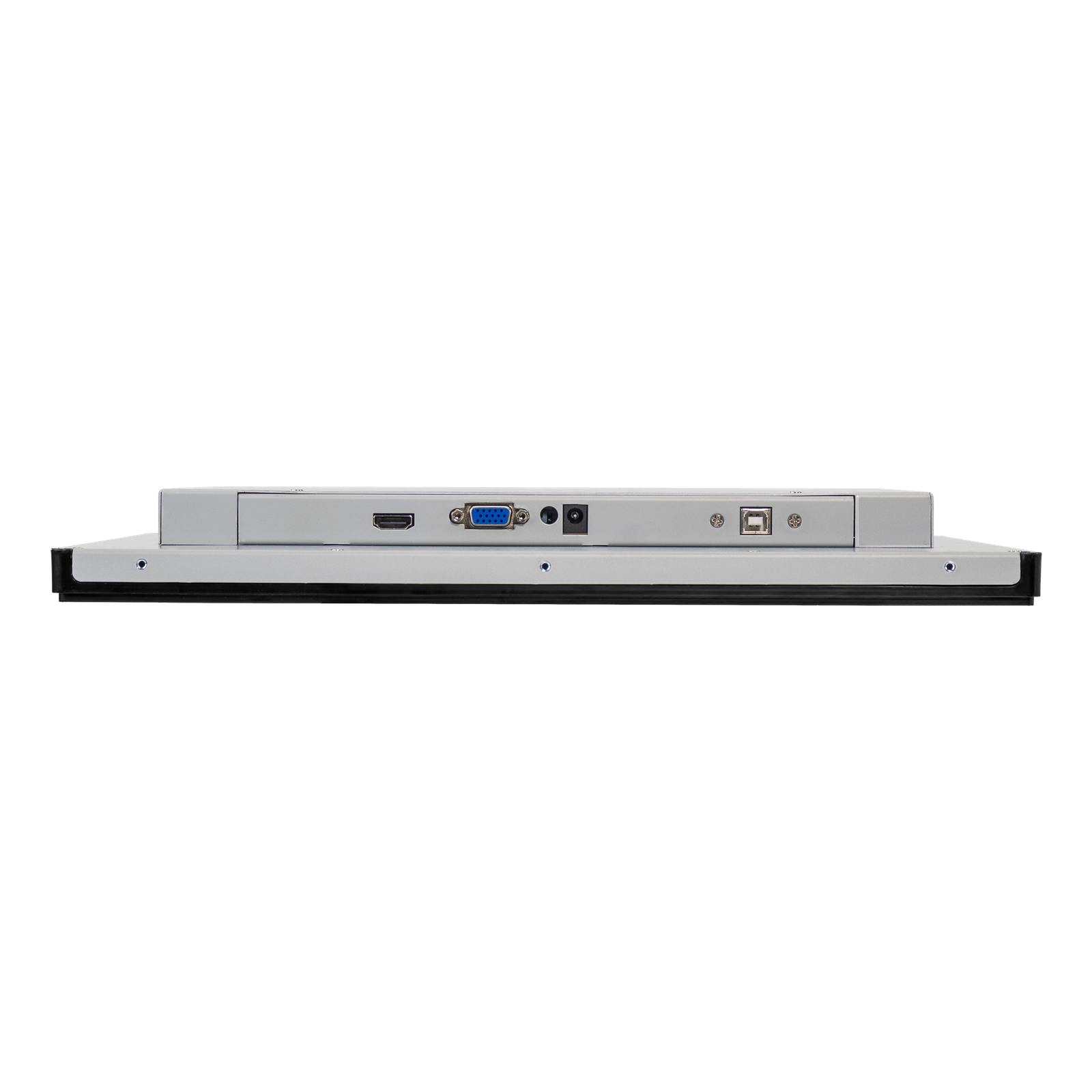

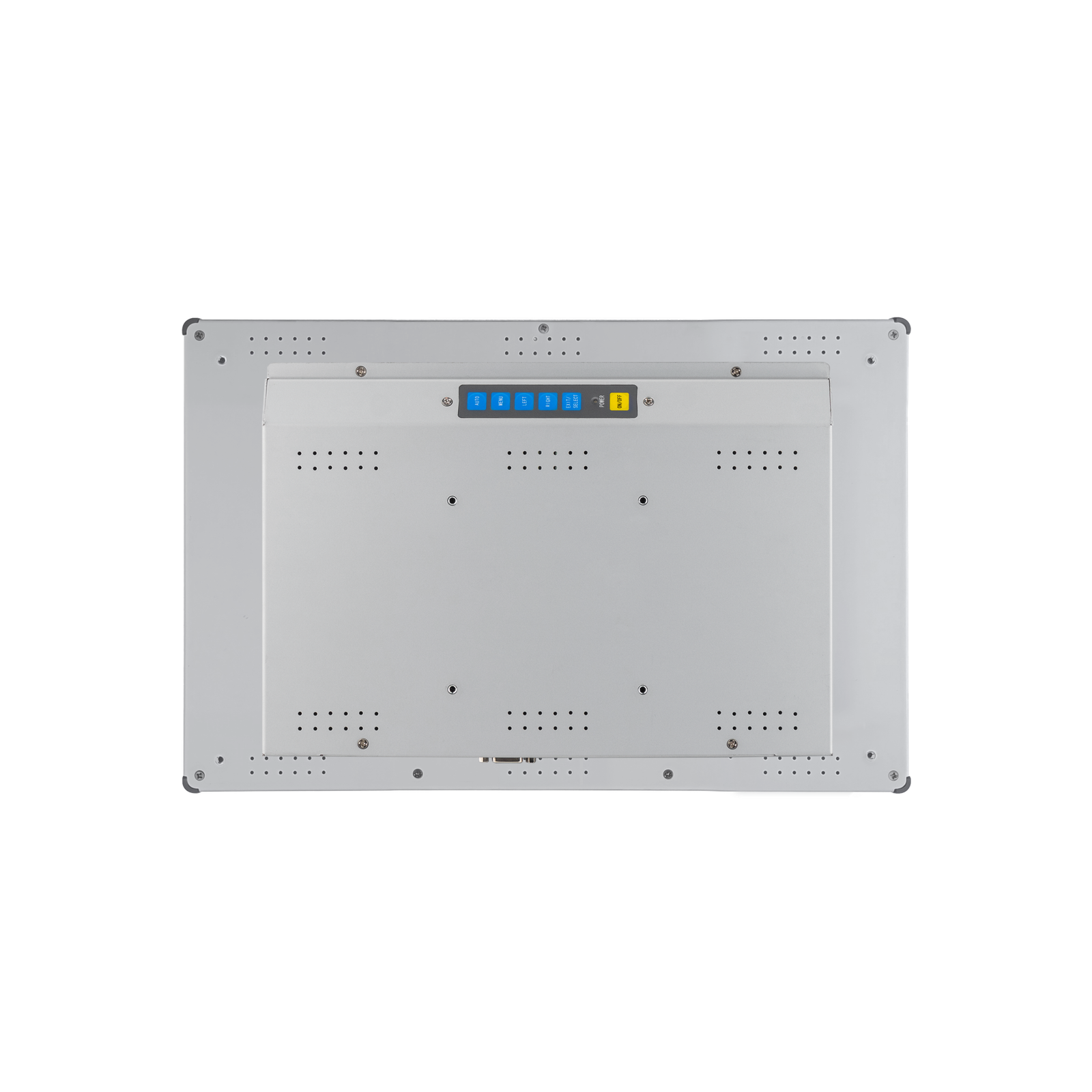

Rear-installed embedded design
TY-X01 is fitted from inside the machine enclosure toward the front opening, with its front surface designed to sit flush with the surrounding panel. Plan space inside the cabinet for the rear housing, retaining hardware and cable bends. The screen diagonal does not determine the cutout; request the current TY-X01 15.6-inch drawing and confirm the approved opening and corner radius before machining.
The 15.6-inch specification lists a 1920 x 1080 display and 10-point capacitive touch. The front panel has IP65 protection under the specified installation conditions; the rear enclosure and connectors require separate protection. CPU, ports and operating system depend on the selected configuration.
Compare embedded, external and wall mounting or review front-panel sealing and rear-port protection.
